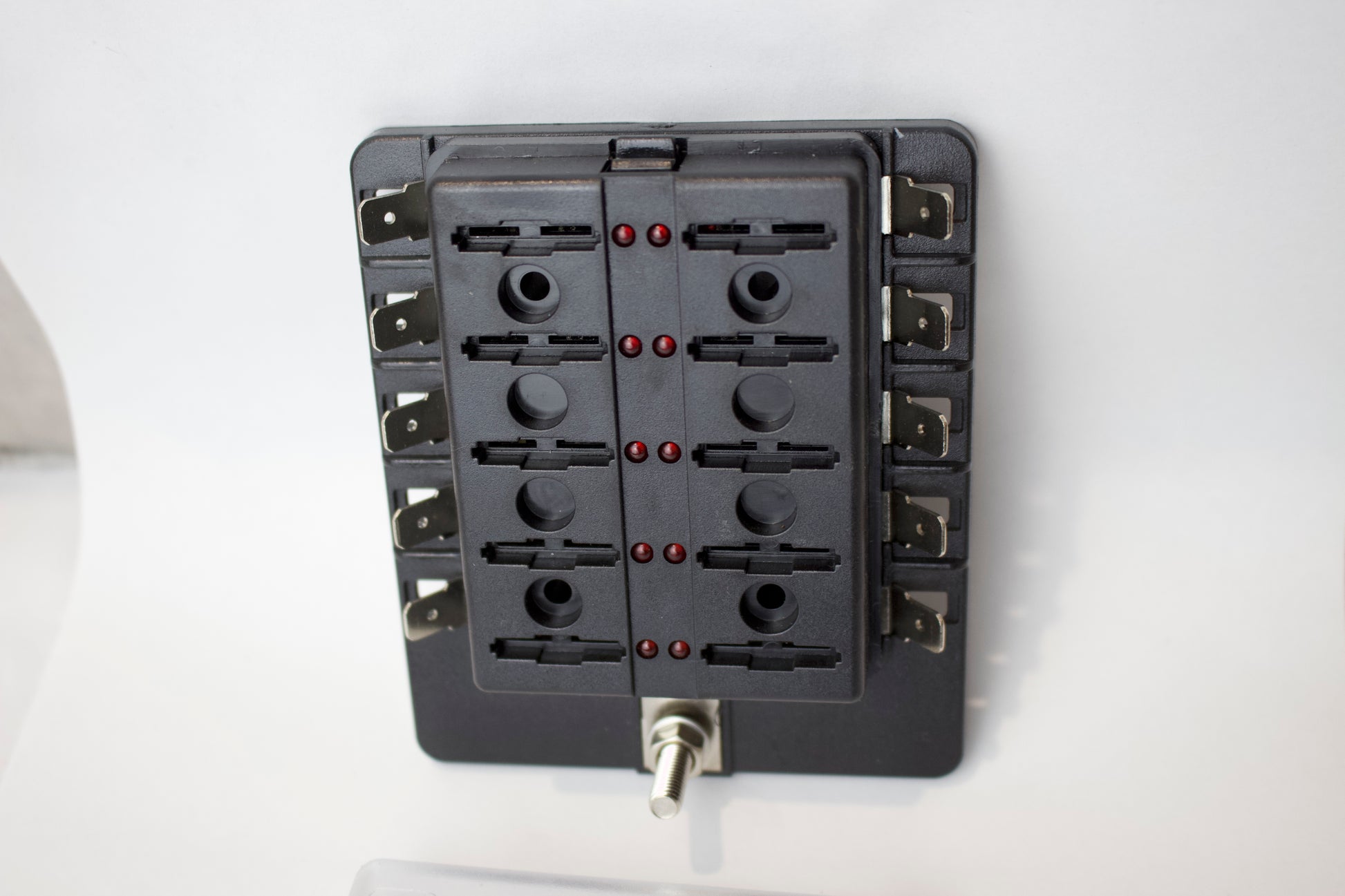

10-Way Blade Fuse Block with LED Indicator

This 10-way fuse block features integrated blown-fuse indicator LEDs for fast and easy fault detection. The clear protective cover allows you to identify failed fuses at a glance without disturbing wiring, making it ideal for clean and efficient electrical system management in 12–24V applications.

Features

• 10-way fuse block with LED blown-fuse indicators

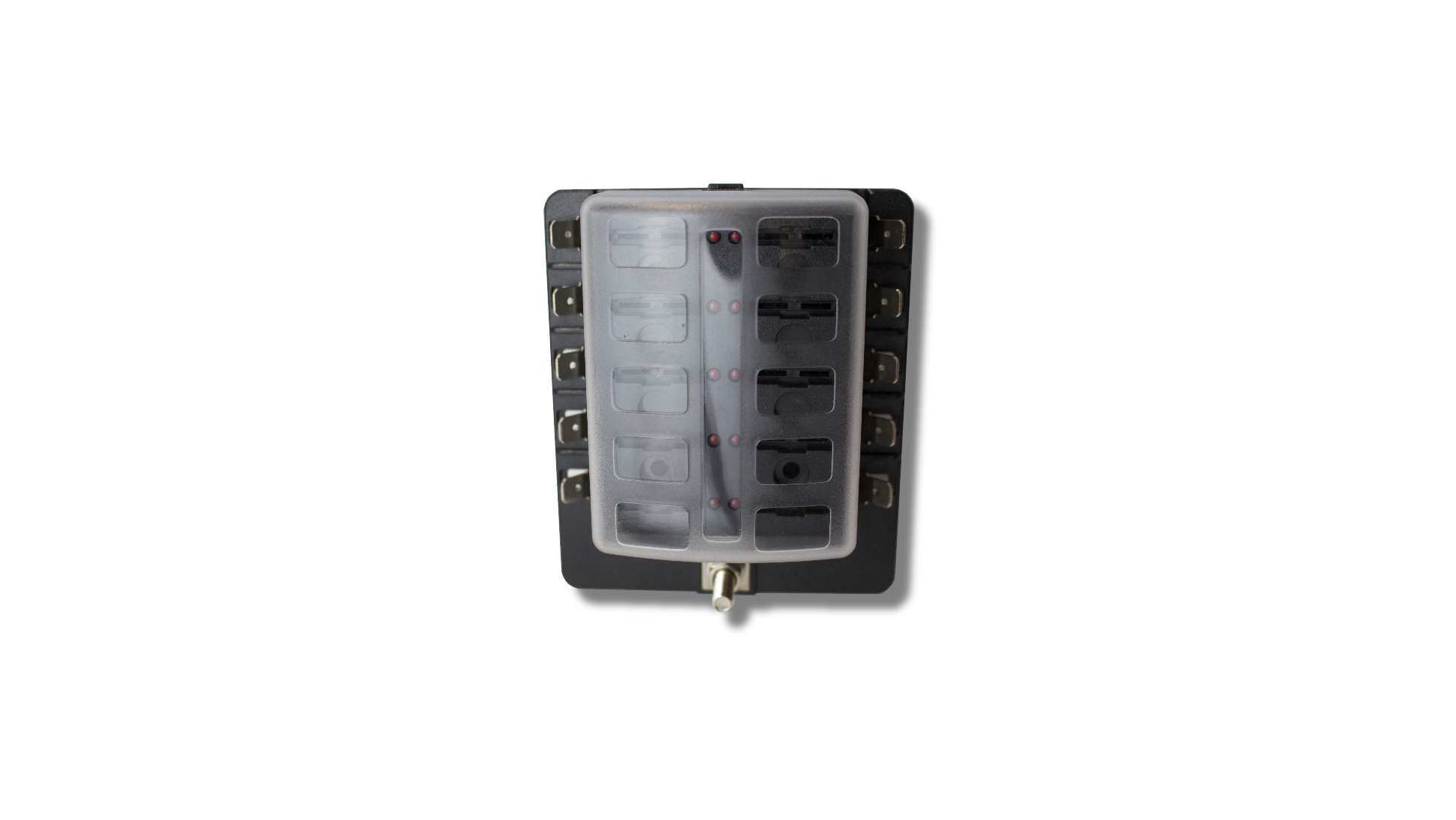

• Clear protective cover for easy visual inspection
• Single input binding post with individual spade terminal outputs
• Suitable for 12–24V electrical systems

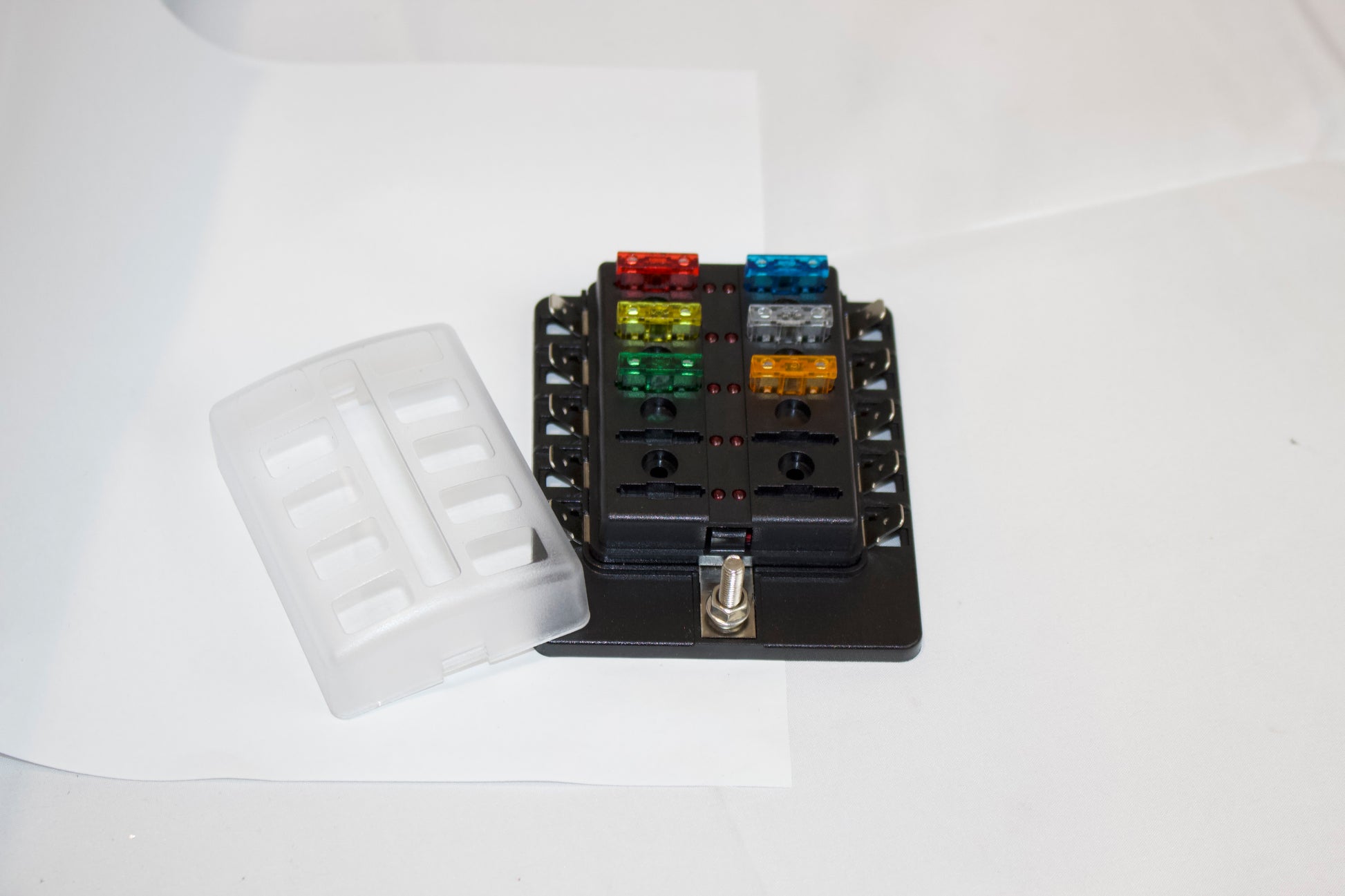

• Supplied with cover and adhesive circuit label set
• Each circuit supports up to 30A

Specifications

• Input Rating: 32V DC, 100A total maximum
• Input Wire Size: 4–6 AWG
• Output Rating: 30A max per circuit
• Output Wire Size: 12–16 AWG
• Fuse Type: Standard ATO blade
• Width: 85.0 mm
• Height: 38.0 mm
• Depth: 100.0 mm
• Weight: 100.0 g

Ideal for automotive, 4WD, caravan, camper trailer, and auxiliary electrical installations requiring organised and protected circuit distribution.
