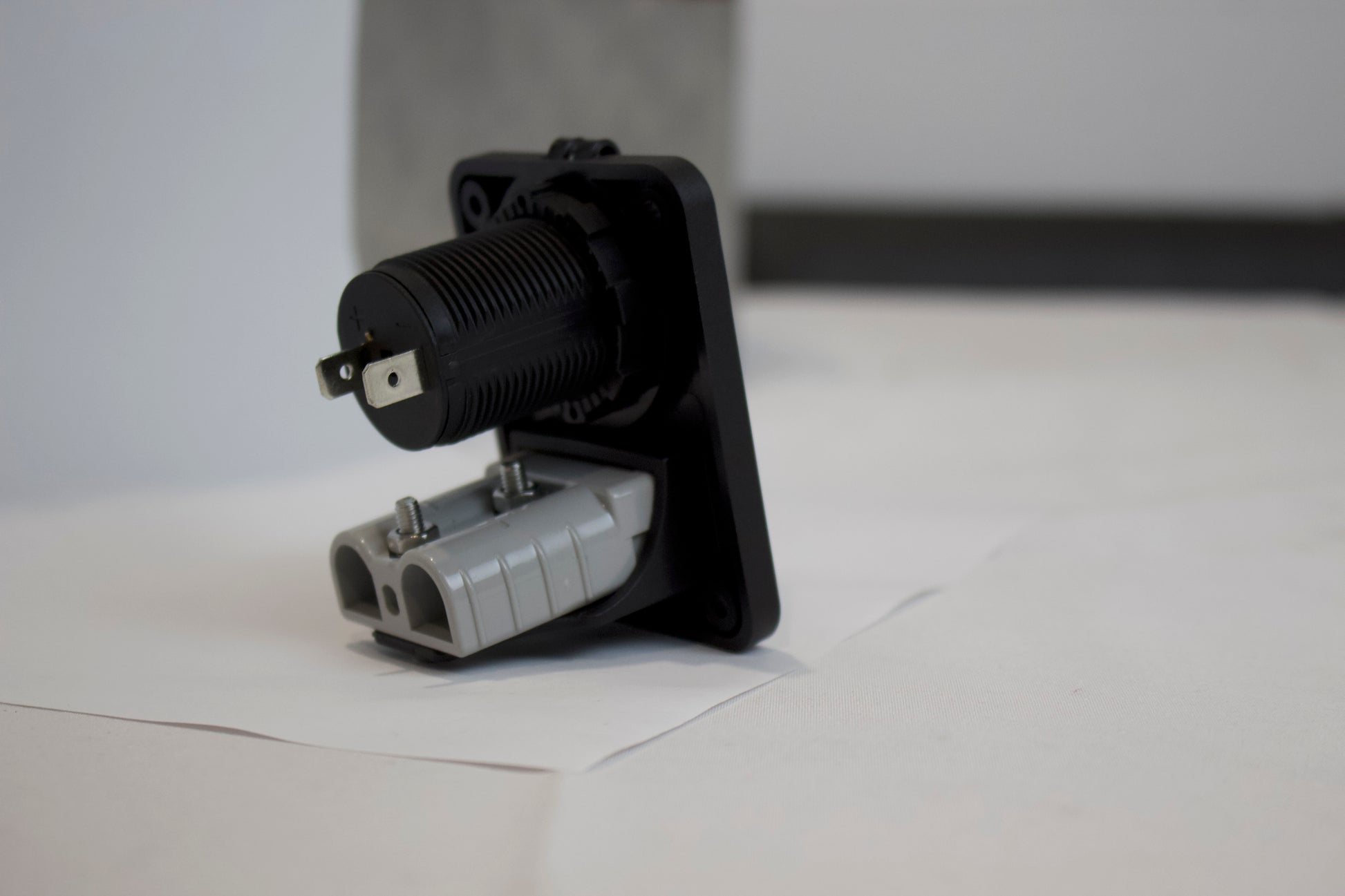

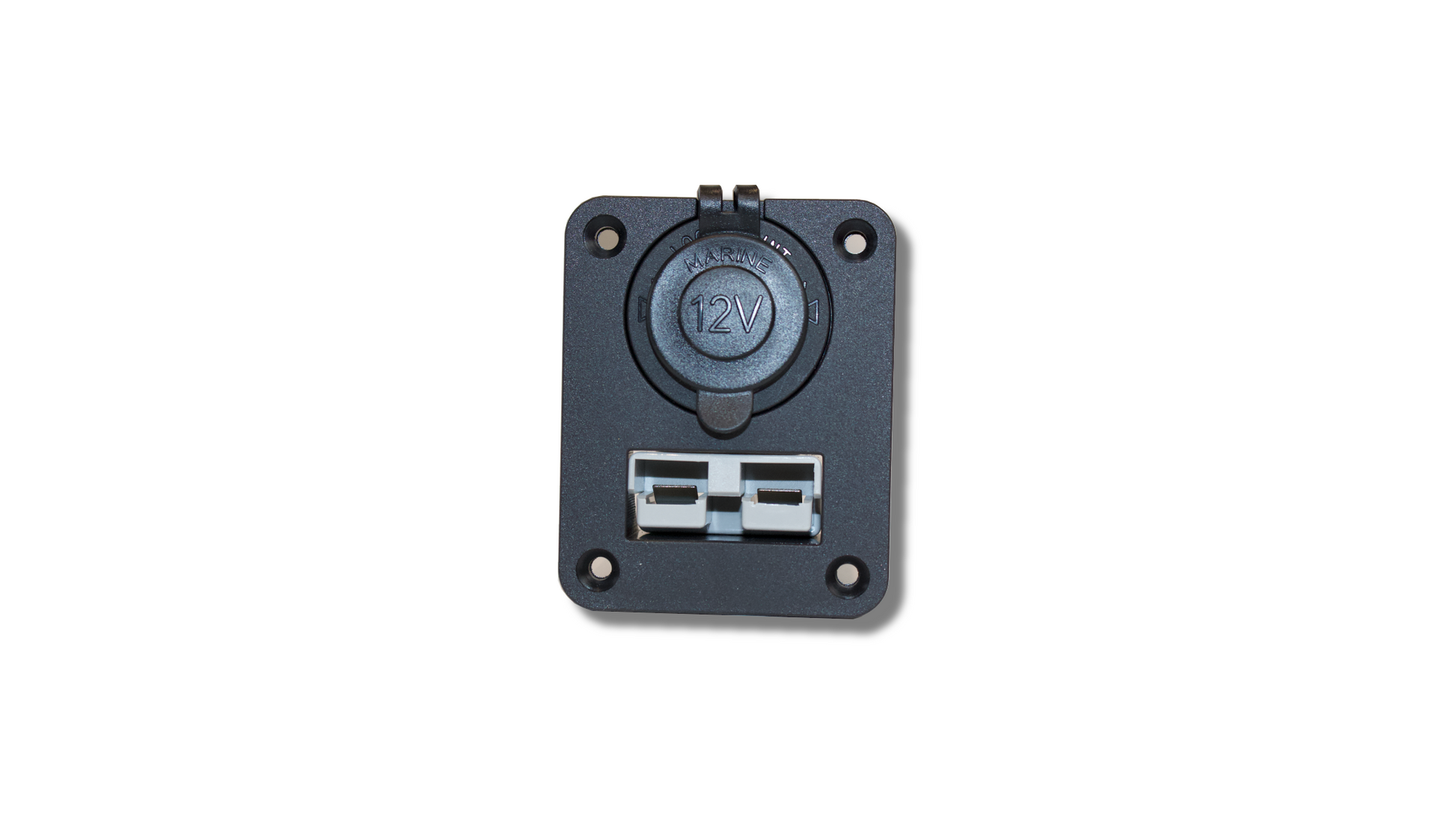

Flush Mount 50A Connector & Cigarette Socket Panel

This flush mounting bracket features a recessed 50A battery connector and a 10A marine cigarette lighter socket, designed for clean installation into trims and panels. It provides a compact and professional power access point for automotive, 4WD, and marine applications.

Features

• 50A rated battery connector
• 10A marine cigarette lighter socket
• Flush mount recessed design for neat panel integration
• Includes mounting hardware

Specifications

• DC Voltage Rating: 12V
• DC Current Rating: 60A
• Connector Type: Power cord plug
• Socket Type: IEC C13 socket (side)
• Contacts/Pins: 3-pin
• Attachment Method: Solder/Screw
• Case Material: Thermoplastic
• Contact Material: Brass
• Cable Entry Diameter: 8 mm

Dimensions

• Width: 60.0 mm
• Height: 75.0 mm
• Depth: 48.0 mm
• Weight: 80.0 g
• Cutout / Carton Dimensions: 40.0 mm (W) x 70.0 mm (H)

Ideal for 4WDs, caravans, camper trailers, and marine setups requiring a compact dual power outlet solution.
